Sensor headers must endure harsh environmental conditions, including mechanical pressure, thermal shock, and vibration, while ensuring the internal delicate electronics maintain consistent data transmission. Typically utilizing compression sealing methods, these products are designed to withstand high-pressure environments, up to 3000 bars, making them ideal for applications requiring such resilience, such as environmental monitoring, medical, and automotive sectors. Jitai's stainless steel brazing facilitates the formation of highly reliable GTM seals, ensuring consistent performance even in challenging conditions involving repetitive actions, irritants, and acids.
Product Design
To facilitate welding with the outer housing during operation, the base of the stainless steel pressure sensor tube is usually rounded. Sensor packages typically comprise three components: the housing, pins, and glass insulators. The components are joined and sealed at elevated temperatures using the glass insulators. Refer to Table 1 for the main materials used.
# | Component | Material |
1 | Housing | Stainless Steel/Low Carbon Steel/4J29 |
2 | Glass Insulator | Elan13#、BH-G/K |
3 | Pins | 4J29/4J50 |
Additional designs. We manufacture thousands of models; if you do not see what you are looking for please contact us

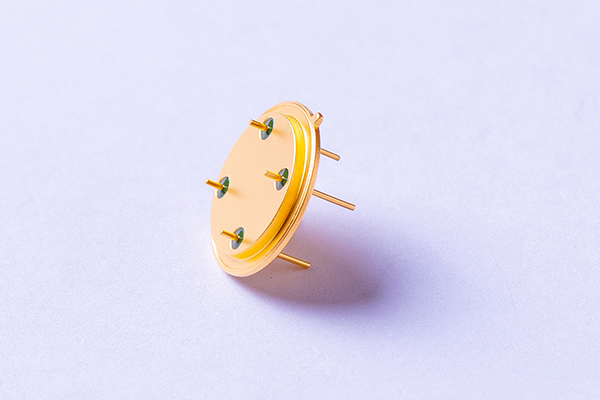

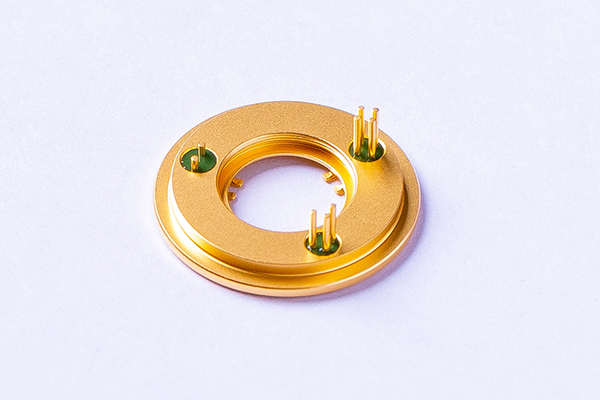

Description: glass to metal seal, circular Kovar package with assembly eyelids, Au finishing on the leads.
309-B | ||||
Housing | Leads | Insulators | ||
Materials | Kovar | DM-305 | ||
Plating | Ni: 3~8.9μm, Au:1.3~5.7μm | |||
Diameter | Φ25.4 | |||
Insulation resistance | ≥ 1× 109 Ω (500V DC) | |||
Hermeticity | ≤ 1x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.2mm |

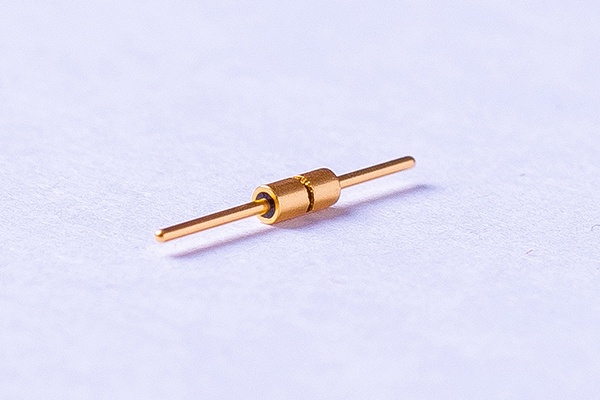

Description: glass to metal seal, hermetic feedthrough , kovar lead and housing, Au finishing.
MBCY001-p1 | ||||
Housing | Leads | Insulators | ![]() | |
Materials | Kovar | DM-305 | ||
Plating | Ni: 2.54~8.9μm, Au:1.25μm | |||
Diameter | Φ1.27mm±0.038 | |||
Insulation resistance | ≥ 1× 109 Ω (500V DC) | |||
Hermeticity | < 3x 10-9 Pa * cm3 /s |

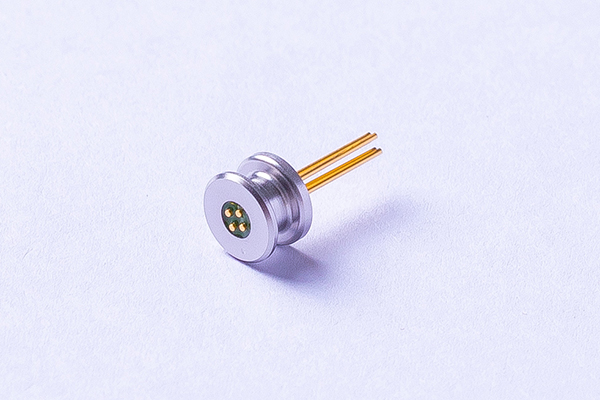

Description: glass to metal seal, hermetic feedthrough , stainless steel housing, Alloy 50 leads, Au finishing on the leads.
MBCY004-p4 | ||||
Tube | Leads | Insulators | ![]() | |
Materials | Stainless steel 316L | 4J50 | Elan 13 | |
Plating | Polished | Ni: 3~11.43μm, Au≥1.3μm | ||
Diameter | Φ3.86mm-0.05 | |||
Insulation resistance | ≥ 5× 108 Ω (500V DC) | |||
Hermeticity | ≤ 1x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.1mm |

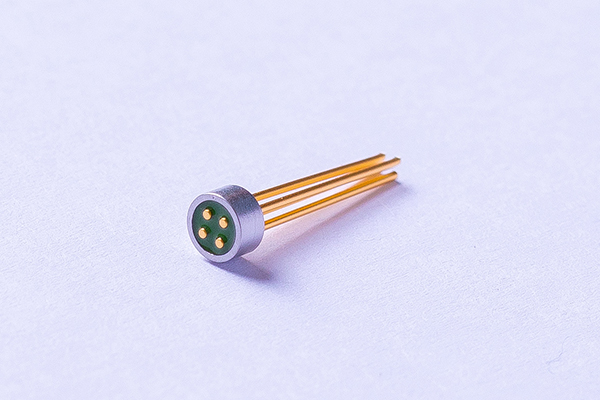

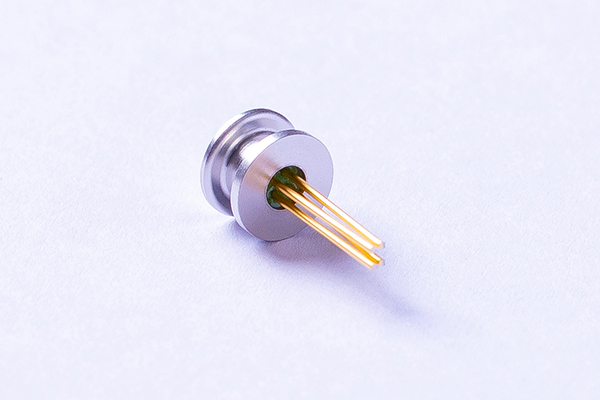

Description: glass to metal seal, hermetic feedthrough , stainless steel housing, Alloy 50 leads, Au finishing on the leads.
MBCY007-p4b | ||||
Housing | Leads | Insulators | ||
Materials | Stainless steel 316L | 4J50 | Elan 13 | |
Plating | Polished | Ni: 3~11.43μm, Au≥1.3μm | ||
Diameter | Φ7.22mm | |||
Insulation resistance | ≥ 5× 108 Ω (500V DC) | |||
Hermeticity | ≤ 1x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.1mm |

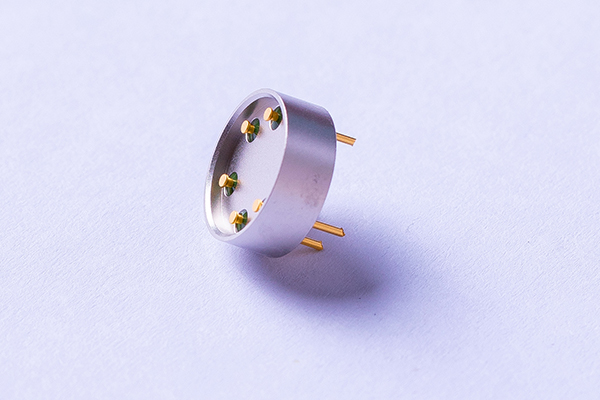

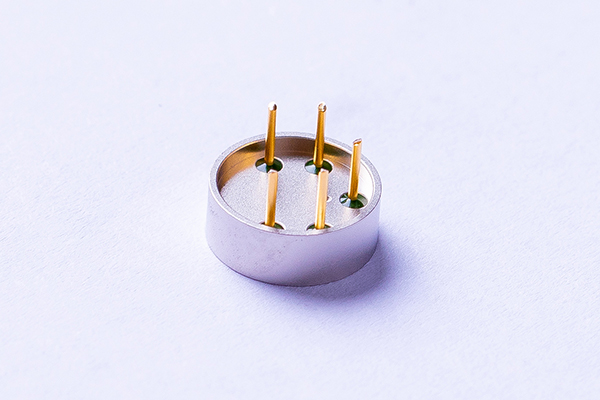

Description: glass to metal seal, circular Kovar package, nail head leads with Au finishing.
MBCY010-w5 | ||||
Housing | Leads | Insulators | ||
Materials | Kovar | BH-G/K | ||
Plating | Ni: 1.3~8.9μm, Au≥1μm | |||
Diameter | Φ9.5mm±0.05 | |||
Insulation resistance | >5× 108 Ω (500V DC) | |||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||
Sealing Method | Suitable for laser welding | |||
Note | Unspecified tolerances are ±0.1mm |

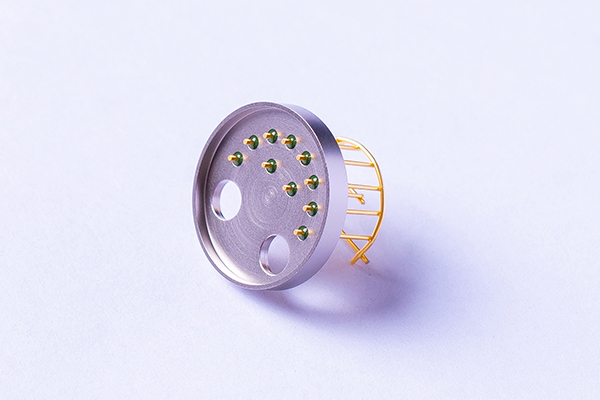

Description: glass to metal seal, circular Kovar package, bent leads with flattened wire bonding tips, Au finishing.
MBCY021-t6 | |||||
Housing | Leads | Lid | Insulators | ||
Materials | Kovar | DM-305 | |||
Plating | Ni: 3~11.43μm, Au:1.3~5.7μm | ||||
Diameter | Φ21.1mm-0.1 | ||||
Insulation resistance | ≥5× 108 Ω (500V DC) | ||||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | ||||
Note | Header:Unspecified tolerances are ±0.2mm | Lid:Unspecified tolerances are ±0.1mm |

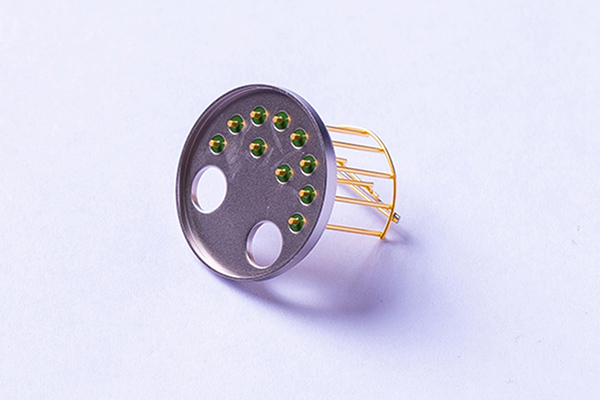

Description: glass to metal seal, circular Kovar package, bent leads with flattened wire bonding tips, Au finishing.
MBCY023-t9 | |||||
Housing | Leads | Lid | Insulators | ||
Materials | Kovar | BH-G/K | |||
Plating | Ni: 3~11.43μm, Au:1.3~5.7μm | ||||
Diameter | Φ23.35±0.05 | ||||
Insulation resistance | ≥ 5× 108 Ω (500V DC) | ||||
Hermeticity | ≤ 1x 10-3 Pa * cm3 /s | ||||
Note | Unspecified tolerances are ±0.2mm | Unspecified tolerances are ±0.1mm |

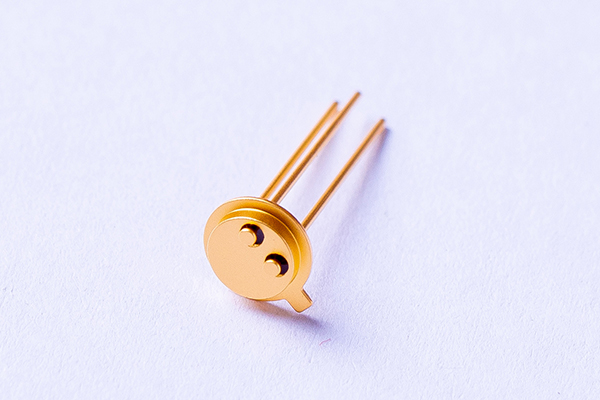

Description: glass to metal seal, TO package, Au finishing.
To-8A-1H | ||||||
Base | Leads | Cap | Insulators | Solder ring | ![]() | |
Materials | Kovar | Ni | BH-G/K | HLAg72Cu28 | ||
Plating | Ni: 4~11.43μm, Au≥0.8μm | Ni: 4~11.43μm, Au≥1.0/1.3μm | ||||
Dimension | Header:Φ14mm , Cap H:5mm | |||||
Insulation resistance | ≥1× 1010 Ω (500V DC) | |||||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||||
Note | Unspecified tolerances are ±0.2mm |

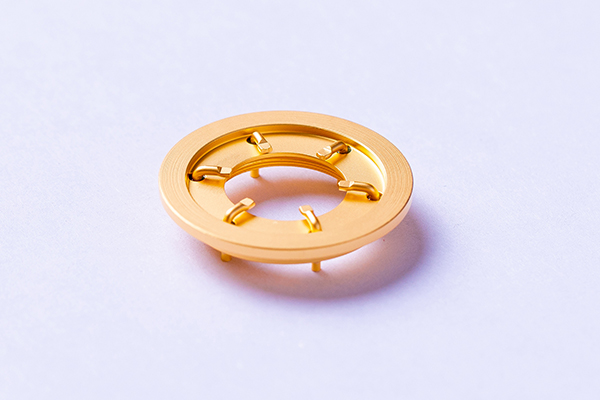

Description: glass to metal seal, circular Kovar package, with assembly eyelids, Au finishing on the leads.
TTQ-10a | ||||
Housing | Leads | Insulators | ![]() | |
Materials | Kovar | DM-305 | ||
Plating | Ni: 3~7μm | Ni: 3~7μm, Au≥1μm | ||
Diameter | Φ18.9mm±0.05 | |||
Insulation resistance | ≥1× 1010 Ω (500V DC) | |||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.2mm |
Description: glass to metal seal, circular package, 3+1 kovar nail head leads, Alloy 42 housing, Au finishing.
MBCY006-w3c | |||||
Housing | Cap | Leads | Insulators | ![]() | |
Materials | 4J42 | Kovar | BH-A/K | ||
Plating | Ni: 2~11.4μm, Au≥1μm | Ni: 2~11.4μm | Ni: 2~11.4μm, Au≥1.3μm | ||
Dimension | Housing:Φ5.31mm+0.2, Cap: H:3.1mm±0.1 | ||||
Insulation resistance | ≥ 1× 1010 Ω (500V DC) | ||||
Hermeticity | ≥ 1x 10-3 Pa * cm3 /s | ||||
Note | Unspecified tolerances are ±0.2mm |

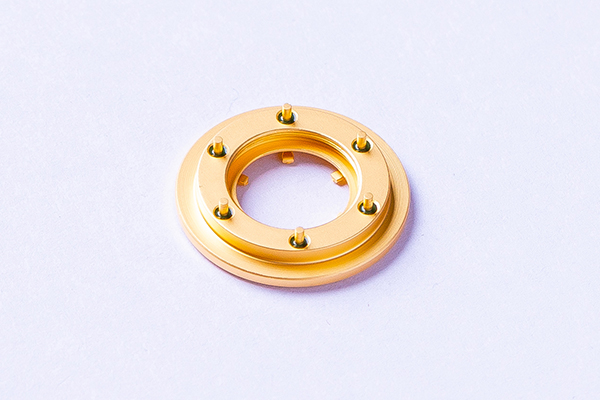

Description: glass to metal seal, circular Kovar package, nail head leads, Au finishing.
MBCY013-p6 | ||||
Housing | Leads | Insulators | ![]() | |
Materials | Kovar | DM-305 | ||
Plating | Ni: 1.3~11.43μm, Au≥1.3μm | |||
Diameter | Φ12.7mm±0.1 | |||
Insulation resistance | ≥ 1× 1010 Ω (500V DC) | |||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.1mm |

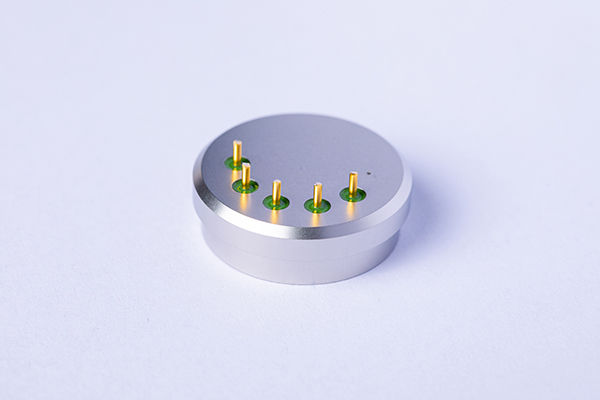

Description: glass to metal seal, stainless steel housing, Alloy 50 leads with Au finishing.
MBCY025-w5d | ||||
Housing | Leads | Insulators | ![]() | |
Materials | 316L stainless steel | 4J50 | Elan #13 | |
Plating | Polished | Ni: 3~11.43μm, Au≥0.3 μm | ||
Diameter | Φ25mm, H:8mm | |||
Insulation resistance | ≥2× 107Ω (100V DC) | |||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.1mm |

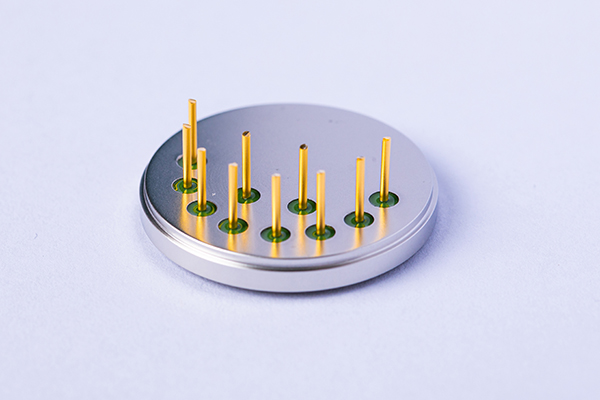

Description: glass to metal seal, stainless steel housing, Alloy 50 leads with Au finishing.
MBCY025-w10h | ||||
Housing | Leads | Insulators | ![]() | |
Materials | 316L stainless steel | 4J50 | Elan #13 | |
Plating | Polished | Ni: 4~24μm, Au1.3~5.7μm | ||
Diameter | Φ25.45mm+0-0.05, H:3mm | |||
Insulation resistance | ≥1× 1010 Ω (500V DC) | |||
Hermeticity | ≤ 1 x 10-3 Pa * cm3 /s | |||
Note | Unspecified tolerances are ±0.1mm |
QUALITY CONTROL
Over the years, we have perfected our multi-step process to ensure that each component passes rigorous quality and functionality tests, starting from the initial stages before raw materials are even acquired. Upon arrival, raw materials undergo an acceptance sampling method to determine acceptance. If accepted, the entire shipment is thoroughly cleaned, inspected, and any minor imperfections are addressed before warehousing. Following initial assembly and brazing, each product undergoes individual visual inspection and a preliminary hermeticity test, adjusted to meet our clients' stringent air tightness requirements. Subsequently, after the plating stage, each batch undergoes sampling inspection and coating bonding degree analysis. Products passing this stage then undergo a comprehensive inspection, evaluating appearance, construction, plating thickness, and a second hermeticity test. Furthermore, they undergo a series of Factory Inspection trials, including pin fatigue tests, salt spray corrosion resistance tests, and climate simulation equipment analysis for performance assessment. Approved products are individually vacuum-packed with deoxidizing desiccant inserts and additional protective packaging before shipment, ensuring consistent high-quality delivery, reflecting our commitment to maintaining product integrity from our factory to your hands.
