7 Types of Ceramic Packaging Every Engineer Should Know in 2026

Author: Site Editor     Publish Time: 02-10-2026      Origin: Site

As electronic systems move toward higher temperatures, frequencies, and reliability requirements, ceramic packaging remains essential to advanced device design.

In 2026, despite the dominance of plastic packages in consumer electronics, ceramic solutions are still critical for aerospace, defense, automotive power electronics, RF systems, and industrial control, thanks to their superior thermal, electrical, and environmental performance.


Why Ceramic Packaging Still Matters in Modern Electronics


Key Material Advantages of Ceramic Packaging

Ceramic materials such as alumina, aluminum nitride, and glass-ceramics offer a unique combination of properties that organic materials cannot match.

High thermal conductivity is a key performance advantage. Ceramic substrates dissipate heat efficiently, reducing junction temperatures and improving device reliability. Aluminum nitride ceramics, in particular, provide thermal conductivity several times higher than standard FR-4 substrates.

Electrical insulation is another defining feature. Ceramics maintain stable dielectric properties over wide temperature ranges and high frequencies. They are therefore appropriate for high-speed digital, microwave, and radio frequency applications where signal integrity is crucial. Hermeticity further distinguishes ceramic packages. Glass-to-metal seals and dense ceramic bodies prevent moisture ingress, oxidation, and chemical contamination. Even in challenging working conditions, this guarantees long-term parameter stability.

Mechanical and chemical resistance also contribute to the longevity of ceramic packaging. Ceramics resist thermal shock, radiation exposure, corrosion, and mechanical fatigue better than most polymer-based materials.


Where Ceramic Packaging Outperforms Plastic

Plastic packaging dominates cost-sensitive consumer markets, but its limitations become evident in extreme conditions.

Ceramic packaging outperforms plastic in the following scenarios:

  • High-temperature operation exceeding 150°C

  • High-power density applications requiring efficient heat dissipation

  • High-frequency circuits where dielectric stability is critical

  • Environments exposed to moisture, chemicals, or radiation

  • Long lifecycle products with service lives exceeding 10 to 20 years

Industries such as aerospace, defense, oil and gas, automotive power electronics, and industrial automation continue to rely on ceramic packages for these reasons.

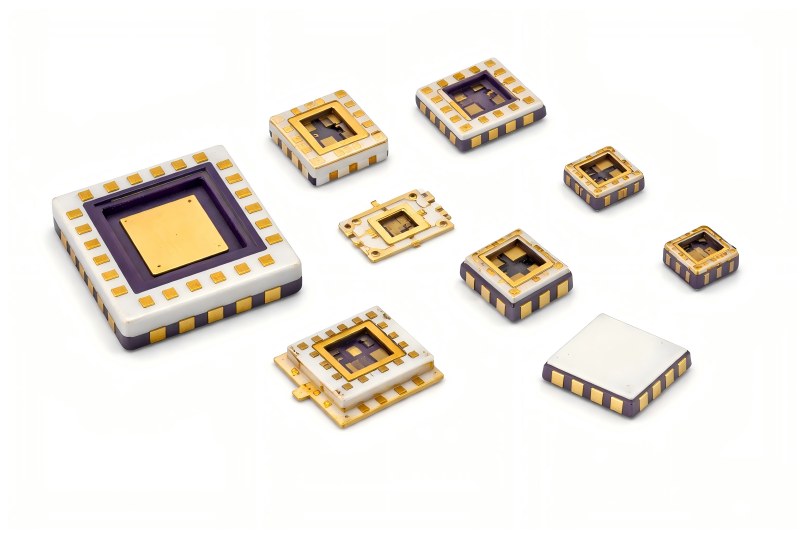

CLCC – Ceramic Leadless Chip Carrier

CLCC – Ceramic Leadless Chip Carrier

Structural Design and Materials

The Ceramic Leadless Chip Carrier, or CLCC, is a surface-mount package featuring metallized pads around its perimeter instead of protruding leads. The ceramic body is typically multilayer alumina or aluminum nitride, allowing internal routing and ground planes.

CLCC reduces package size while preserving strong mechanical and electrical performance by doing away with leads. The bottom and side metallization enables reliable solder attachment directly to the PCB.


Electrical and Thermal Characteristics

CLCC packages' compact geometry results in minimal parasitic capacitance and inductance. This makes them particularly suitable for RF and high-speed analog applications.

Thermally, CLCC benefits from direct heat transfer through the ceramic body into the PCB. While it does not match the thermal performance of larger ceramic BGAs, it significantly outperforms plastic leadless packages under similar conditions.


Typical Applications

CLCC is frequently utilized in:

  • RF transceivers and amplifiers

  • Aerospace communication modules

  • Military-grade analog ICs

  • High-density sensor electronics

Its compact size and excellent signal integrity make CLCC a preferred solution where space and performance are both critical.


CQFP – Ceramic Quad Flat Package


Package Geometry and Lead Configuration

The Ceramic Quad Flat Package, or CQFP, features a flat ceramic body with gull-wing leads extending from all four sides. Compared to plastic QFPs, CQFPs use ceramic substrates and glass-sealed leads to enhance reliability.

Lead pitch can be fine, supporting high pin counts while maintaining surface-mount compatibility.


Performance Advantages

CQFP packages offer superior thermal and mechanical stability compared to their plastic counterparts. The ceramic body resists warpage during solder reflow and thermal cycling, reducing solder joint fatigue.

Electrically, CQFPs provide consistent impedance and low dielectric loss, making them suitable for mixed-signal and moderately high-frequency designs.


Common Use Cases

CQFP packages are commonly found in:

  • Avionics processors

  • Industrial control units

  • Radiation-tolerant microcontrollers

  • Automotive power control modules

They serve applications that require higher I/O counts without sacrificing reliability.

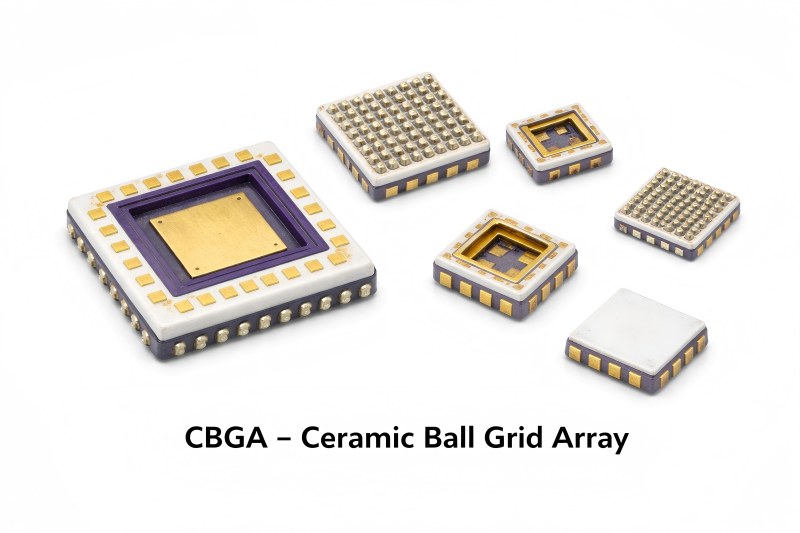

CBGA – Ceramic Ball Grid Array

CBGA – Ceramic Ball Grid Array

Construction and Interconnect Design

Packages called Ceramic Ball Grid Arrays, or CBGAs, are made up of a ceramic substrate with a solder ball array on the underneath. Internal routing layers distribute signals from the die to the ball array, supporting very high I/O densities.

The ceramic substrate provides structural rigidity and excellent thermal conductivity.


Thermal and Mechanical Benefits

CBGA packages excel in thermal performance. Heat spreads efficiently through the ceramic substrate, allowing higher power densities and improved junction temperature control.

Mechanically, CBGA exhibits lower warpage and better resistance to thermal cycling compared to organic BGA packages. This is particularly crucial for large package sizes.


Applications Driving Adoption

CBGA is widely used in:

  • High-performance processors

  • Space-grade computing modules

  • Radar and signal processing systems

  • Telecommunications infrastructure

Its ability to support high pin counts and power levels makes CBGA essential for advanced system-on-chip designs.


CDIP – Ceramic Dual In-Line Package


Traditional Structure and Reliability

The Ceramic Dual In-Line Package, or CDIP, is a through-hole package featuring a rectangular ceramic body with leads extending from two parallel sides.

Despite its age, CDIP remains relevant due to its exceptional reliability and ease of inspection. Glass-sealed leads and thick ceramic walls provide outstanding environmental protection.


Electrical Stability and Longevity

CDIP packages exhibit excellent electrical stability over time. Parameter drift is minimal, even after decades of operation in harsh conditions.

Their through-hole design also offers strong mechanical anchoring, which is valuable in vibration-intensive environments.


Typical Applications

CDIP packages are still used in:

  • Military and defense electronics

  • Aerospace control systems

  • Legacy industrial equipment

  • Precision analog devices

While surface-mount packages dominate new designs, CDIP remains indispensable for long-life systems.


CFP – Ceramic Flat Package


Package Profile and Lead Layout

The Ceramic Flat Package, or CFP, is a low-profile ceramic package designed for surface mounting. Leads may be arranged along the sides or underside, depending on the variant.

CFP designs focus on minimizing height while maintaining mechanical strength and hermetic sealing.


Performance Characteristics

CFP packages are appropriate for high-frequency and precision applications due to their consistent electrical performance and low inductance.

Their flat profile improves thermal coupling to the PCB or heat spreader, enhancing overall heat dissipation.


Key Application Areas

CFP packages are commonly used in:

  • Aerospace avionics

  • Precision instrumentation

  • Sensor and measurement modules

  • Compact military electronics


MCM – Multi-Chip Module (Ceramic)


What Makes Ceramic MCM Unique

Ceramic Multi-Chip Modules integrate multiple semiconductor dies onto a single ceramic substrate. HTCC or LTCC technologies are commonly used to build multilayer interconnect structures.

This approach enables complex system integration within a compact footprint.


System-Level Advantages

Ceramic MCMs improve signal integrity and lower latency by shortening the interconnect lengths between dies. Power distribution is also more efficient, supporting high-performance computing requirements.

Thermal management is enhanced through the ceramic substrate, which spreads heat across the module.


Typical Use Cases

Ceramic MCMs are deployed in:

  • Radar and electronic warfare systems

  • High-performance computing modules

  • Advanced RF subsystems

  • Industrial automation platforms

They are essential when system-level integration and performance optimization are required.


CSOP – Ceramic Small Outline Package


Compact Design and Footprint

The Ceramic Small Outline Package, or CSOP, adapts the familiar SOP form factor using a ceramic body. This allows engineers to retain compact designs while improving thermal and environmental performance.

CSOP packages are surface-mount compatible and support automated assembly.


Electrical and Thermal Benefits

Compared to plastic SOPs, CSOP offers:

  • Higher thermal resistance to degradation

  • Improved heat dissipation

  • Better electrical stability over temperature

These benefits make CSOP suitable for demanding industrial and automotive applications.


Applications

CSOP is commonly used in:

  • Automotive electronics

  • Power management ICs

  • Industrial automation systems

  • High-temperature control circuits


Comparison of the 7 Ceramic Packaging Types


Size, I/O Count, and Mounting Style

Package Type

Mounting Style

Typical I/O Count

Relative Size

CLCC

Surface-mount

Low to Medium

Very Small

CQFP

Surface-mount

Medium to High

Medium

CBGA

Surface-mount

Very High

Large

CDIP

Through-hole

Low to Medium

Large

CFP

Surface-mount

Medium

Low Profile

MCM

Surface-mount

Very High

Custom

CSOP

Surface-mount

Low to Medium

Small


Thermal and Electrical Performance Overview

Package Type

Thermal Performance

High-Frequency Suitability

Reliability

CLCC

Good

Excellent

High

CQFP

Good

Good

High

CBGA

Excellent

Good

Very High

CDIP

Moderate

Moderate

Very High

CFP

Good

Excellent

High

MCM

Excellent

Excellent

Very High

CSOP

Moderate

Good

High


Manufacturing and Cost Considerations

Package Type

Manufacturing Complexity

Relative Cost

CLCC

Medium

Medium

CQFP

Medium

Medium

CBGA

High

High

CDIP

Low

Medium

CFP

Medium

Medium

MCM

Very High

Very High

CSOP

Low to Medium

Medium


How Engineers Should Choose the Right Ceramic Package in 2026

Selecting the appropriate ceramic package requires a system-level perspective. Engineers should evaluate power density, operating temperature, signal frequency, environmental exposure, and expected product lifetime.

High-power or high-I/O designs often favor CBGA or MCM solutions. Compact RF and sensor applications benefit from CLCC or CFP. Legacy or ultra-reliable systems may still rely on CDIP, while CSOP provides a practical upgrade path from plastic SOPs.

Cost, manufacturability, and supply chain considerations also play a role, particularly as ceramic packaging involves longer lead times and specialized processes.
