TO packages remain a trusted choice for transistors, diodes, sensors, and power devices because of their durability and proven performance. However, selecting the right TO package requires balancing thermal, electrical, mechanical, manufacturing, and supply factors to avoid overheating, reliability issues, assembly problems, and system failure.
TO packages are standardized semiconductor packages defined by their mechanical outlines and pin configurations. Common examples include:
TO-92: Small plastic package for low-power applications
TO-126: Medium-power package with improved heat dissipation
TO-220: Popular power package with a metal tab for heat sinking
TO-247: High-power package for industrial and high-current applications
TO-8 / TO-39: Metal can packages, often hermetically sealed for high-reliability environments
Each package type is designed for specific power levels, thermal conditions, and environmental requirements.
Thermal performance is one of the most important considerations when choosing a TO package. Since semiconductor devices generate heat while functioning, insufficient heat removal may cause:
Reduced efficiency
Accelerated aging
Thermal runaway
Device failure
Different TO packages have significantly different thermal resistances. For example, a TO-92 package is not suitable for high-power applications due to its limited heat dissipation capability, while a TO-220 or TO-247 package is designed to handle higher thermal loads.
A common mistake is selecting a package based only on size or cost without fully evaluating the thermal requirements of the application.
Calculate power dissipation under real operating conditions
Use thermal simulation tools during the design phase
Select packages with appropriate thermal resistance (RθJA, RθJC)
Consider adding heat sinks, thermal pads, or forced cooling
Include safety margins for extreme environments

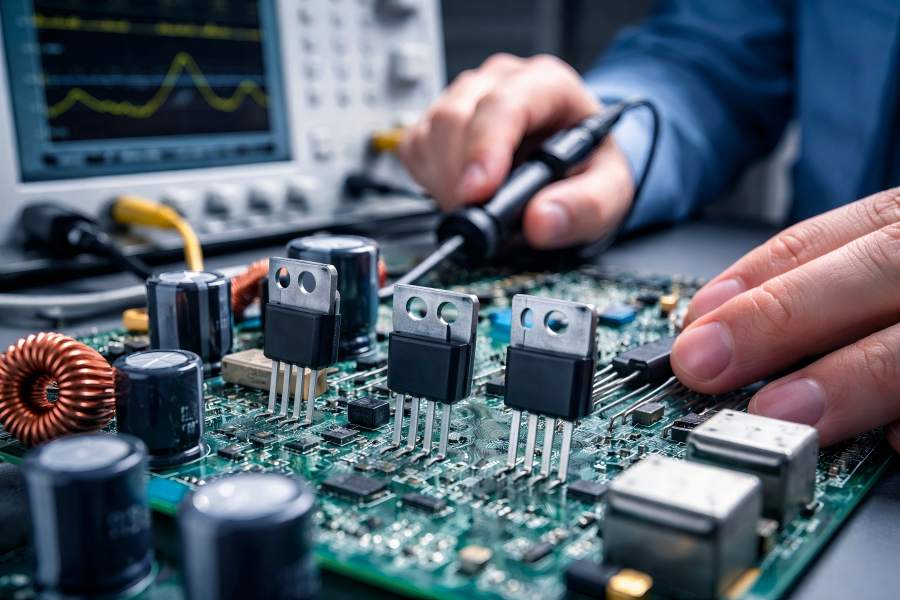

TO packages influence not only thermal behavior but also electrical performance. Factors such as lead length, spacing, and internal structure can introduce parasitic inductance and capacitance.
These parasitic effects can negatively impact:
High-frequency switching performance
Signal integrity
Electromagnetic interference (EMI)
For example, long leads in through-hole TO packages can increase inductance, which becomes problematic in high-speed or high-frequency circuits.
Analyze operating frequency and switching requirements
Use shorter lead configurations when possible
Optimize PCB layout to minimize parasitic effects
Consider alternative package types for high-frequency applications
Collaborate with circuit designers to ensure compatibility
TO packages must function dependably in a variety of environmental circumstances, including as mechanical shock, vibration, dampness, and severe temperatures.
A poorly chosen package may lead to:
Cracking due to thermal expansion mismatch
Corrosion in humid or corrosive environments
Mechanical failure under vibration or stress
Plastic packages may be sufficient for standard environments, but harsh conditions often require more robust solutions such as metal or ceramic packages.
Evaluate environmental conditions early in the design process
Choose hermetically sealed packages for harsh environments
Test for thermal cycling, vibration, and humidity resistance
Ensure compliance with industry standards
Use protective coatings or encapsulation if necessary
TO packages are typically through-hole components, which can create challenges in modern manufacturing environments dominated by surface-mount technology (SMT).
Issues may include:
Increased assembly time and cost
Compatibility problems with automated assembly lines
Misalignment during manual soldering
Additional steps for heat sink attachment
If assembly constraints are not considered early, they can lead to production inefficiencies and higher costs.
Align package selection with manufacturing capabilities
Confirm compatibility with automated assembly processes
Design PCB layouts with proper spacing and mounting holes
Consider hybrid or surface-mount alternatives if needed
Involve manufacturing engineers in the decision process
As electronic devices become more compact, space on the PCB becomes increasingly valuable. TO packages, especially high-power variants, can occupy significant board space.
Selecting an excessively big box can:
Limit design flexibility
Increase product size
Restrict component placement
On the other hand, selecting a smaller package may compromise thermal and electrical performance.
Balance size, performance, and thermal requirements
Use 3D modeling tools to validate design constraints
Optimize component placement on the PCB
Consider vertical mounting or alternative layouts
Plan for future miniaturization needs
Production schedules and expenses can be greatly impacted by supply chain disruptions. Even widely used TO packages may face issues such as:
Long lead times
Limited supplier options
Obsolescence of certain package types
Relying on a single supplier or niche package can increase risk.
Select packages with multiple sourcing options
Verify availability and lifecycle status
Build relationships with reliable suppliers
Maintain buffer stock for critical components
Develop contingency plans for supply disruptions
While TO packages follow general standards, variations between manufacturers can still occur. Differences in dimensions, pin configurations, or thermal properties can lead to:
PCB compatibility issues
Assembly errors
Performance inconsistencies
Assuming that all TO packages with the same designation are identical can be a costly mistake.
Always review detailed datasheets
Verify mechanical drawings and tolerances
Use standardized PCB footprints
Conduct compatibility testing
Avoid assumptions based on package name alone
Cost is always a factor in product design, but focusing too heavily on minimizing cost can lead to poor packaging decisions.
Cheaper packages may:
Offer lower thermal performance
Have reduced reliability
Require additional components (e.g., heat sinks), increasing overall cost
Conversely, over-specifying a package can also increase costs unnecessarily.
Evaluate total cost of ownership, not just component price
Consider long-term reliability and maintenance costs
Optimize design for both performance and cost efficiency
Conduct cost-benefit analysis for different package options
Unexpected failures in real-world systems might result from ignoring or reducing testing during the design process. Packaging-related issues may not become apparent until the product is deployed.
Common risks include:
Overheating under load
Mechanical failure under stress
Degradation over time
Perform thorough validation testing
Conduct thermal, electrical, and mechanical tests
Simulate real-world operating conditions
Use accelerated life testing methods
Iterate design based on test results
