Author: Site Editor Publish Time: 03-18-2025 Origin: Site
As portable electronic devices become more advanced, the demand for compact hermetic power packages has surged. These packages provide superior insulation, durability, and thermal management, making them indispensable in high-power hybrid circuits. Innovations in materials and sealing methods are pushing the boundaries of miniaturization and efficiency, shaping the future of power electronics.

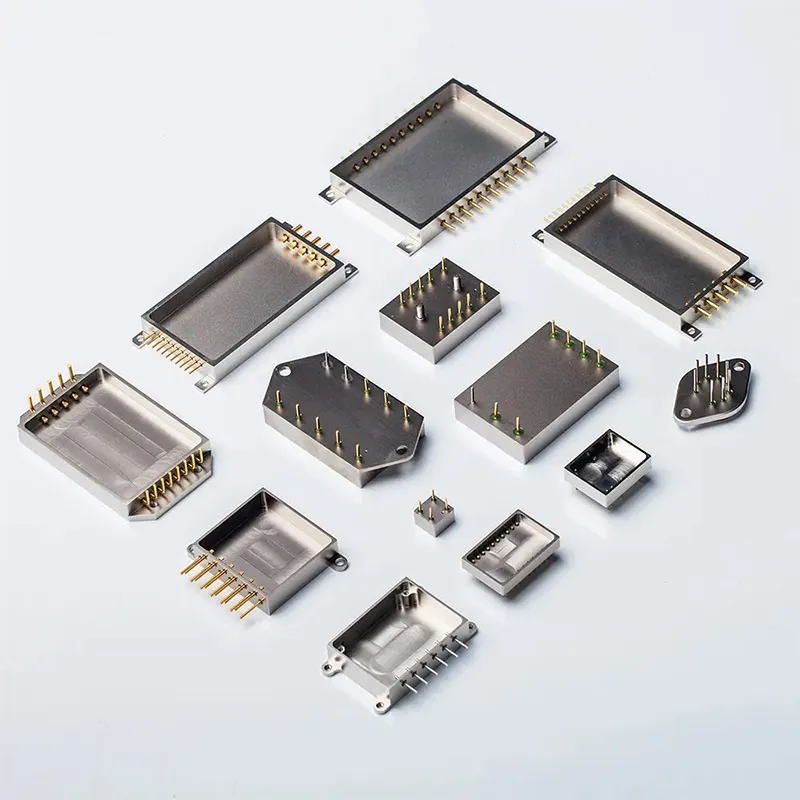

In the modern electronics industry, high-power thick and thin film hybrid circuits require robust and compact packaging solutions. Hermetic power packages offer an airtight seal, preventing moisture, contaminants, and environmental factors from degrading internal components. Performance, dependability, and longevity are critical factors in portable devices, therefore this is especially important.
Several factors drive the rise of compact hermetic power packages:
Miniaturization of Electronics: With the demand for smaller yet more powerful devices, manufacturers are focusing on reducing the size of power modules while maintaining efficiency.
Thermal Management Challenges: As power density increases, heat dissipation becomes critical. Advanced materials like tungsten copper, oxygen-free copper, and 10# steel ensure optimal thermal performance.
Enhanced Durability & Reliability: High-performance portable electronics require packaging that can withstand harsh environments, extreme temperatures, and long operational lifetimes.
Stringent Insulation Requirements: Ensuring electrical insulation and preventing leakage is crucial in high-power applications. Modern hermetic packages must meet high insulation resistance standards.
The success of compact hermetic power packages hinges on the selection of materials that provide high thermal conductivity, strength, and electrical insulation.
The housing of hermetic power packages plays a crucial role in mechanical stability and heat dissipation. Common materials include:
10# Steel: Provides high structural integrity, ensuring durability in demanding applications.
Tungsten Copper (W-Cu): Offers superior thermal conductivity and resistance to wear.
Molybdenum-Copper (Mo-Cu): A lightweight alternative with excellent heat dissipation properties.
Oxygen-Free Copper (OF-Cu): Enhances electrical conductivity while ensuring low thermal resistance.
Leads serve as the electrical connection between the power package and the circuit. These materials were chosen because they can retain insulation and electrical conductivity. Key lead materials include:
4J50 Copper Core: A nickel-iron alloy offering excellent thermal expansion control.
4J29 Copper Core: Known for its strength and corrosion resistance.
Oxygen-Free Copper: Ensures high conductivity with minimal impurity levels.
Zirconium Copper: Enhances resistance to wear and oxidation, making it ideal for high-power applications.
Airtight sealing is a defining characteristic of hermetic power packages, preventing moisture ingress and external contaminants from affecting internal circuits. The two sealing techniques that are most frequently employed are:
Ensures high-strength hermetic sealing using continuous welding along the package's seam.
Ideal for industries like aircraft and medical electronics that demand extremely dependable sealing.
Offers excellent thermal resistance and mechanical stability.
An accurate and effective technique that produces robust, contaminant-free seals.
Ideal for miniaturized hermetic packages where high accuracy is required.
Provides low heat input, reducing stress on sensitive electronic components.
Both sealing techniques ensure that the power package meets the strict insulation resistance standards required for high-power electronic applications.
The efficiency of hermetic power packages is determined by factors such as thermal performance, electrical insulation, and mechanical stability. The table below compares key performance aspects of different housing and lead materials used in hermetic power packages.
Parameter | 10# Steel | Tungsten-Copper (W-Cu) | Molybdenum-Copper (Mo-Cu) | Oxygen-Free Copper (OF-Cu) |
Thermal Conductivity | Moderate | Very High | High | Very High |
Mechanical Strength | High | High | Moderate | Moderate |
Weight | Heavy | Heavy | Lightweight | Moderate |
Corrosion Resistance | High | Moderate | High | Very High |
Cost | Low | High | Moderate | High |
From this comparison, tungsten-copper and oxygen-free copper stand out as the best choices for thermal management, while 10# steel remains a cost-effective option with high mechanical stability.
Compact hermetic power packages are crucial in various high-power portable applications, including:
Medical Devices: Pacemakers, hearing aids, and portable diagnostic equipment rely on hermetic packaging for long-term reliability.
Aerospace & Defense: Military-grade electronics require robust packaging that withstand extreme conditions.
Electric Vehicles (EVs) & Battery Packs: Compact power packages improve thermal regulation in battery management systems (BMS).
5G & IoT Devices: Hermetic packaging ensures a stable power supply for high-speed, low-latency connectivity applications.
Hermetic power packages that are dependable and efficient will become more and more necessary as consumer and industrial electronics continue to advance.
The following cutting-edge technologies will completely transform the upcoming generation of small hermetic power packages:
Nano-Coatings for Enhanced Insulation: New materials with nano-scale coatings will further improve thermal and electrical performance.
3D-Printed Hermetic Packaging: Additive manufacturing is opening new possibilities for customized and ultra-compact designs.
AI-Optimized Power Management: Smart packaging solutions integrating AI-driven power regulation will enhance device efficiency.
With continuous advancements in material science and packaging technologies, hermetic power packages will become smaller, more efficient, and more cost-effective, further driving their adoption in the global portable device market.
Compact hermetic power packages are redefining thermal management, insulation, and durability in modern electronics. Their ability to support high-power applications while ensuring reliability makes them essential for portable device manufacturers. With ongoing innovations in materials, sealing techniques, and miniaturization, the market for hermetic power packages is poised for exponential growth in the coming years.
