In today’s fast-evolving electronics design and manufacturing environment, selecting the right Surface-Mount Device SMD package size is a critical decision that affects performance, production yield, cost efficiency, and user experience.
As high-density boards and miniaturized systems become standard across applications ranging from automotive power modules to wearable health devices, understanding SMD package options and selection criteria is essential for successful design.
Surface-Mount Technology (SMT) revolutionized electronics manufacturing by enabling components to be mounted directly onto the surface of printed circuit boards (PCBs), eliminating the need for through-hole leads and drastically reducing board real estate usage.
This approach accelerates automated placement, reduces drilling operations, and creates opportunities for double-sided assembly, yielding the following tangible benefits:
Higher routing density and reduced board size
Lower weight and improved electrical performance
Enhanced assembly throughput with automated pick-and-place machines
Reduced material cost and improved product reliability
In recent years, market demand has pushed SMD package sizes to smaller footprints. Integrated circuits that once took up square centimeters now fit within square millimeters, and passive components have shrunk to sizes smaller than a grain of rice. This miniaturization trend affects industries such as consumer electronics, medical devices, industrial automation, and aerospace.
At its core, an SMD package’s size refers to the physical dimensions that a component occupies on the PCB. Unlike through-hole leaded components, where dimensions focus on lead spacing and body size, SMD packages are defined by length and width — typically in millimeters (mm) or in imperial units expressed as “hundredths of an inch.”
The industry uses standardized codes such as 0201, 0402, 0603, 0805, 1206, etc., where a code like 0603 can be decoded as 0.06 inches (length) × 0.03 inches (width), which converts to approximately 1.6 mm × 0.8 mm. These codes provide a universal shorthand that designers, manufacturers, and buyers can use to specify components unambiguously.
Below are samples of common passive SMD sizes and their typical board footprint:
SMD Code | Dimensions (mm) | Dimensions (inches) | Common Usage |
01005 | 0.4 × 0.2 | 0.016 × 0.008 | Ultra-compact consumer devices |
0201 | 0.6 × 0.3 | 0.02 × 0.01 | High-density mobile electronics |
0402 | 1.0 × 0.5 | 0.04 × 0.02 | Smartphones, wearables |
0603 | 1.6 × 0.8 | 0.06 × 0.03 | Consumer and industrial electronics |
0805 | 2.0 × 1.25 | 0.08 × 0.05 | Power-handling passive circuits |
1206 | 3.2 × 1.6 | 0.12 × 0.06 | Higher power/current passive applications |
These sizes represent just the beginning of SMD options. On the active component side, integrated circuits frequently adopt packages such as SOIC, TSSOP, QFN, BGA, and others — each with its own set of dimensions, lead counts, pitch specifications, and thermal characteristics.

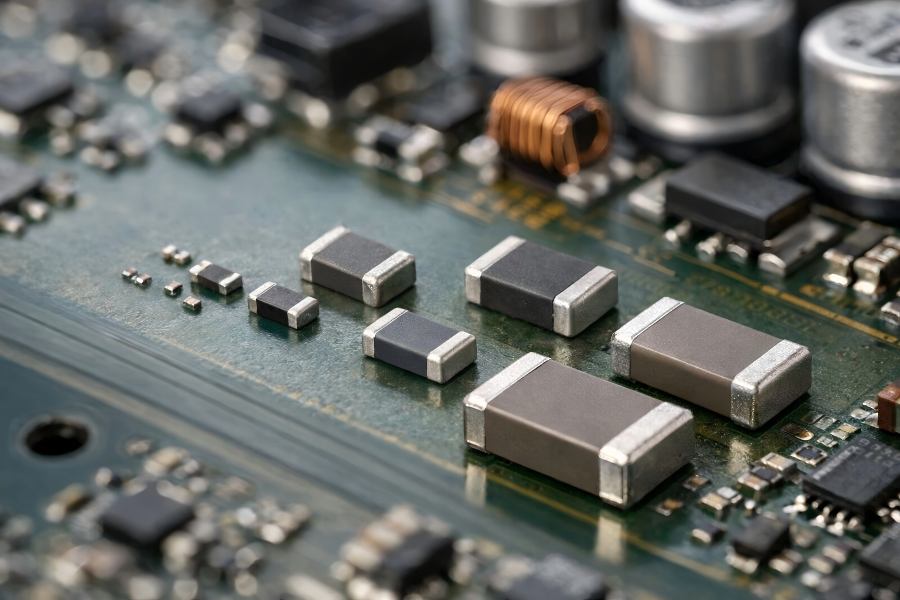

Passive components — including resistors, capacitors, and inductors — account for the largest volume of SMD devices on any PCB. Designers must balance size, precision, power handling, and thermal performance when choosing these parts.
01005 – ~0.4 × 0.2 mm: Ultra-compact parts used in space-constrained modules.
0201 – ~0.6 × 0.3 mm: Favored in mobile and IoT applications requiring extreme density.
0402 – ~1.0 × 0.5 mm: A common all-purpose size that remains one of the most widely specified.
0603 – ~1.6 × 0.8 mm: Provides a good balance between power rating and size.
0805 & 1206 – Larger footprints that support higher power ratings for filtering and bias networks.
From a performance standpoint:
Smaller sizes like 01005 and 0201 deliver compact layouts but reduce maximum power dissipation.
Mid-range options like 0603 and 0805 absorb more power while still enabling efficient routing.
Larger 1206 parts are often chosen when thermal management and robustness outweigh miniaturization.
Manufacturers often provide data tables for each code that detail power rating, resistance or capacitance tolerance ranges, voltage limits, and temperature coefficients. These technical attributes are crucial when calculating derating and reliability for high-stress environments.
Active devices such as logic ICs, microcontrollers, amplifiers, and power modules are available in a wide range of form factors. These packages differ significantly in pin count, pitch, and assembly requirements.
Below are representative categories:
Package Type | Typical Body Size Range | Pin Count | Key Characteristics |
SOIC | 3.9–15 mm wide | 8–28+ | Standard leaded IC package; easy to handle |
TSSOP | 3–6 mm wide | 8–80+ | Thin, high-pin count ICs with reduced height |
QFN | 2 × 2 to 7 × 7 mm | 8–70+ | No-lead package, excellent thermal performance |
BGA | 5–40 mm+ | 100–1000+ | Ball grid array for high-bandwidth, high-density circuits |
MSOP | ~3 × 3 to 3 × 4 mm | 8–16 | Mini small-outline for space-limited analog/digital ICs |
Each package family has design trade-offs:
Leaded packages like SOIC and MSOP are typically easier to prototype and test but occupy slightly more real estate.
No-lead packages such as QFN and BGA reduce inductance, improve thermal paths, and support high-speed performance, but require precision assembly and inspection processes.
For example, a high-pin-count microcontroller in a TSSOP-48 package will demand a finer pitch footprint and careful solder paste control, while a QFN-24 power driver benefits from an exposed thermal pad that efficiently conducts heat through the PCB.
Choosing the right SMD package size goes beyond simply matching board space to component dimensions. Multiple technical and logistical factors must weigh into the decision:
Smaller package sizes generally have higher thermal resistance and lower power dissipation capabilities. For example:
A 0603 resistor may support ≤100 mW of continuous power at ambient temperature.
An 0805 resistor of comparable tolerance might handle ≥250 mW.
Larger parts or active devices with exposed pads can dissipate several watts when coupled with PCB copper pours and thermal vias.
Thermal simulation and layout planning often determine package viability, particularly for high-power analog circuits or DC-DC converter designs.
High-speed designs such as RF front ends, ADC and DAC interfaces, and GHz clock networks are highly sensitive to parasitic capacitance and inductance caused by package geometry.
No-lead packages shorten current paths and promote better RF performance.
Fine-pitch BGAs help maintain symmetry and minimize skew in high-speed buses.
Designers must balance size with performance, often turning to package datasheets and electromagnetic modeling to quantify effects.
Surface-mount assembly systems have finite resolution and placement accuracy. As packages shrink (e.g., below 0201), requirements for:
Pick-and-place precision
Stencil design fidelity
Reflow oven profiling
Automated optical inspection (AOI)
increase significantly. Some extreme miniaturized parts push the limits of conventional SMT lines and may require specialized handling.
In addition, environmental factors like moisture sensitivity levels (MSL) affect solderability and reliability, demanding careful inventory control.
To illustrate how package dimensions influence practical design choices, here’s a deeper numerical comparison across commonly used SMD families:
Package | Typical Length (mm) | Typical Width (mm) | Typical Height (mm) | Suitable for |
01005 | 0.40 | 0.20 | 0.20 | Dense mobile designs |
0201 | 0.60 | 0.30 | 0.23 | Wearables, IoT |
0402 | 1.00 | 0.50 | 0.35 | General use, compact |
0603 | 1.60 | 0.80 | 0.40 | Consumer & industrial |
0805 | 2.00 | 1.25 | 0.45 | Higher power passives |
1206 | 3.20 | 1.60 | 0.55 | Robust circuits |
Active package example:
Package Type | Typical Body Dimensions | Lead Pitch (mm) | Assembly Complexity |
SOIC | 8–15 mm length × 4–10 mm width | 1.27 | Low |
TSSOP | 3–6 mm × 3–7 mm | 0.65 or 0.50 | Medium |
QFN | 2–7 mm square or rectangular | 0.50 or smaller | High |
BGA | 5–40 mm+ wide | 0.40 or smaller | Very High |
These data points help designers quantify the impact of package choices on layout, thermal profile, and manufacturability.
