Semiconductor packaging does more than protect devices—it affects performance, reliability, heat dissipation, and integration. Among many options, TO packages are widely used in traditional electronics and power devices, while Butterfly packages are designed for advanced optical and photonic applications.

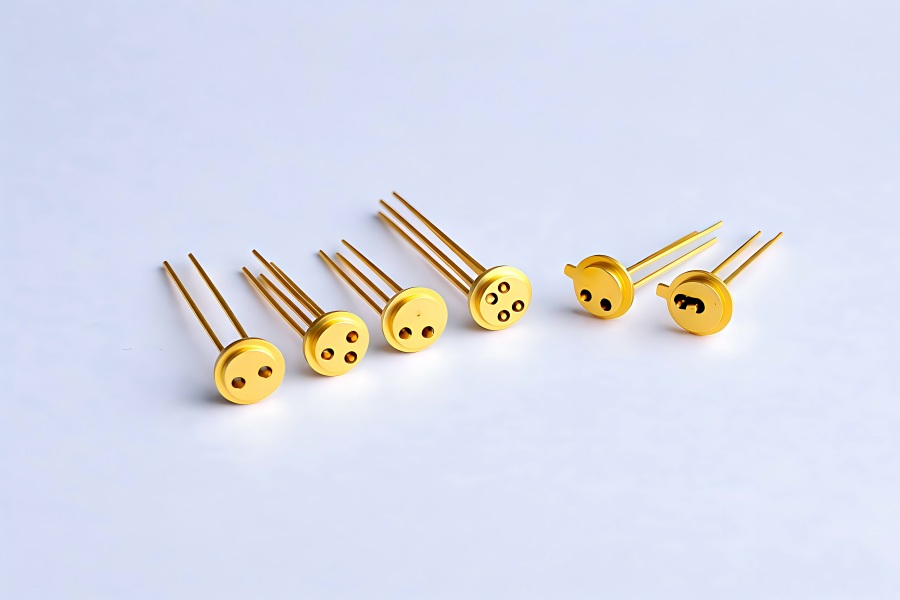

TO packages (Transistor Outline packages) are among the most widely recognized and standardized semiconductor package formats in the industry. They were originally developed for discrete transistors but have since evolved to support a wide range of components, including diodes, voltage regulators, sensors, and power semiconductors.
Typically made of metal, plastic, or a combination of both
Available in both through-hole and surface-mount configurations
Standardized sizes such as TO-92, TO-220, TO-247 ensure compatibility
Strong mechanical durability for industrial environments
Efficient heat dissipation, especially in packages with metal tabs
Power electronics such as MOSFETs and IGBTs
Analog and signal processing circuits
Automotive control modules
Industrial automation systems
Consumer electronics like power supplies and adapters
TO packages are valued for their simplicity, reliability, and cost efficiency. Because of their standardized design and ease of manufacturing, they are widely used in high-volume production environments where consistency and affordability are essential.

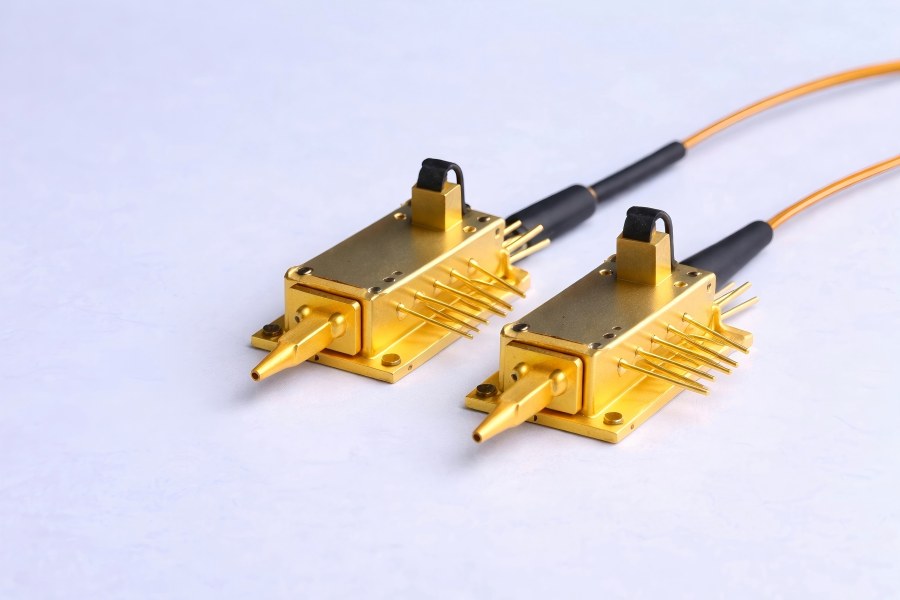

Butterfly packages are highly specialized semiconductor packages primarily used in optical communication and photonics systems. Their unique shape, which resembles a butterfly due to extended side pins or mounting mechanisms, is the source of their name.
Unlike TO packages, Butterfly packages are not general-purpose. They are engineered for precision applications that require tight optical alignment, advanced thermal control, and high-speed signal performance.
Hermetically sealed metal housing for environmental protection
Integration of multiple components such as laser diodes and photodiodes
High-precision optical fiber alignment
Built-in Thermoelectric Cooler (TEC) for temperature stabilization
Multi-pin configurations for complex electrical control
Optical transceivers and communication modules
Laser diode systems
Fiber optic sensing technologies
LiDAR and autonomous sensing systems
High-speed data transmission infrastructure
Butterfly packages are designed for high-performance and high-reliability applications, especially in environments where even small variations in temperature or alignment can significantly impact system performance.
The structural design of a package directly influences its functionality, complexity, and application range.
TO packages feature a relatively simple structure:
Compact housing with limited internal components
Typically 2–5 leads for basic electrical connections
Minimal internal integration
Focused purely on electrical performance
This simplicity makes TO packages easy to manufacture, assemble, and integrate into various systems.
Butterfly packages are structurally more complex:
Larger housing with multiple integrated components
Often 10 or more pins for control and monitoring
Includes laser sources, photodiodes, TEC, and sensors
Designed for both electrical and optical functionality
This level of integration reduces the need for external components but increases design complexity and cost.
TO packages prioritize simplicity and scalability, making them ideal for mass production. Butterfly packages prioritize integration and precision, making them suitable for advanced, high-performance systems.
Thermal management is one of the most critical considerations when selecting a semiconductor package, especially for high-power or temperature-sensitive applications.
TO packages rely on passive heat dissipation:
Heat is transferred through leads and mounting tabs
Can be paired with external heat sinks for improved performance
Suitable for moderate to high power applications
Simple and reliable thermal path
Cost-effective cooling solutions
Easy integration with standard thermal management systems
Limited precision in temperature control
Performance can vary with environmental conditions
Butterfly packages use advanced thermal management systems:
Integrated Thermoelectric Cooler (TEC)
Active temperature control with high precision
Maintains stable operating conditions for sensitive components
Extremely precise temperature regulation
Consistent performance across varying environments
Essential for optical signal stability
Higher power consumption due to active cooling
Increased system complexity and cost
TO packages are suitable for general thermal management, while Butterfly packages are essential when temperature stability directly affects performance, such as in optical systems.
Electrical performance is another major factor influenced by package design.
Longer leads in through-hole designs
Increased parasitic inductance and capacitance
Suitable for low to medium frequency applications
Reduced signal integrity at high frequencies
Potential electromagnetic interference (EMI) issues
Optimized internal layout for high-frequency signals
Reduced parasitic effects
Designed for high-speed communication systems
Excellent signal integrity
Stable performance in GHz-level applications
Lower noise and interference
Butterfly packages provide superior performance in high-speed and high-frequency applications, while TO packages are better suited for conventional electronic systems.
This is the most significant difference between the two package types.
Primarily designed for electrical components
Limited support for optical integration
Suitable for basic sensing applications only
Specifically designed for optical systems
Supports laser emission, detection, and fiber coupling
Enables precise optical alignment and integration
If your application involves optical communication, lasers, or photonic systems, Butterfly packages are the preferred—and often necessary—choice.
Cost is always a key factor in product design and manufacturing decisions.
Low production cost
High availability and standardization
Easy assembly and maintenance
High manufacturing and material costs
Requires precision assembly and calibration
More expensive components such as TEC and optical modules
Factor | TO Packages | Butterfly Packages |
Unit Cost | $0.10–$5 | $30–$300+ |
Structure Cost | Low | High |
Manufacturing Complexity | Low | High |
Assembly Cost | Low | High |
Thermal Management Cost | Low to Moderate | Moderate to High |
Testing & Calibration Cost | Low | High |
Maintenance Cost | Low | Moderate to High |
Integration Cost | Low | High |
TO packages are ideal for cost-sensitive, high-volume applications, while Butterfly packages are justified in performance-critical and specialized systems.
Reliability is crucial, especially in demanding operating environments.
Strong mechanical design
Resistant to vibration and shock
Suitable for harsh industrial environments
Hermetically sealed for protection against moisture and contaminants
Designed for controlled environments
Sensitive to mechanical stress due to precision components
TO packages excel in rugged environments, while Butterfly packages are best suited for controlled, high-precision applications.
Package size and integration level affect system design flexibility.
TO Packages | Butterfly Packages |
Compact and lightweight | Larger footprint |
Easy to integrate into PCB layouts | High level of integration |
Limited functionality per package | Reduces need for external components |
TO packages are ideal when space and simplicity are priorities, while Butterfly packages are better when integration and advanced functionality are required.
Power electronics and discrete components
General-purpose analog circuits
Industrial and automotive systems
Cost-sensitive mass production
Applications with moderate performance requirements
Optical communication systems
Laser diode modules
High-speed data transmission
Precision sensing applications
Systems requiring strict temperature control
