TO packages are widely used in semiconductor and optoelectronic devices. Their header and cap configurations directly affect thermal performance, optical efficiency, sealing reliability, and integration.
Understanding these structural differences helps engineers and buyers select the right package for better performance and long-term reliability.
The foundation of the TO package is the header. It serves as the mechanical foundation on which the semiconductor or optoelectronic chip is mounted. It also provides the electrical path between the internal die and the external circuit through lead pins.
In many cases, the header also plays an important role in thermal management, because heat generated by the die is transferred through the header to the surrounding environment or to a heat sink.
A typical TO header includes:
A metal base
Lead pins sealed through glass or ceramic insulation
A die mounting area or pedestal
A sealing surface for attaching the cap
The header is more than a support platform. Its structure determines how many electrical connections the package can support, how easily the die can be assembled, how efficiently heat can be dissipated, and whether the package is suitable for optical alignment or hermetic sealing.
The cap is the upper enclosure that is attached to the header after the internal device is assembled and wire bonded. Its primary purpose is to protect the die and internal structures from moisture, dust, mechanical damage, and environmental contamination.
Depending on its intended use, the cap may additionally have optical properties like:
A glass window
An anti-reflection window
A lens
An opening for light transmission
Filters for specific wavelengths
For standard electronic devices, the cap mainly provides sealing and protection. For optoelectronic devices, however, the cap can directly affect light transmission, optical alignment, beam shaping, and overall device efficiency.

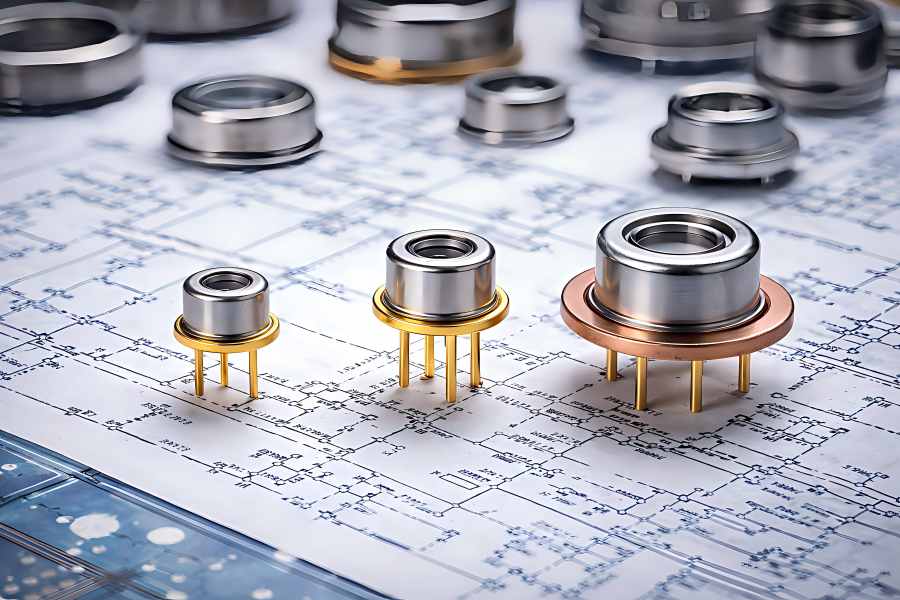

TO headers can be classified in several ways, including by pin count, shape, thermal structure, and application type.
One of the most basic ways to categorize TO headers is by the number of lead pins.
Two-pin headers are relatively simple and are often used in basic photodiodes, simple detector packages, or other devices that do not require multiple electrical paths. Their advantages include a compact structure, lower manufacturing complexity, and lower cost.
However, two-pin headers are limited in functionality. They are not suitable for devices requiring monitoring, grounding, temperature sensing, or multiple active connections.
Three-pin headers are among the most common TO header configurations. They are widely used for transistors, laser diodes, and photodiodes. The extra pin provides more flexibility, such as adding a ground, case connection, or monitor photodiode output.
This configuration is widely used in many standard TO package applications because it provides a nice mix between functionality and simplicity.
For more complex devices, four-pin or higher pin count headers are often used. These are common in optoelectronic applications where additional electrical connections are needed for monitoring, thermoelectric cooling, control functions, or dual-device integration.
While multi-pin headers provide greater design flexibility, they also require more precise assembly and can increase package size and cost.
The physical structure of the header base also varies depending on application requirements.
Flat headers have a relatively simple base design with a flat die attach area. They are widely used in standard packaging applications where thermal load is moderate and die size is manageable.
Advantages of flat headers include:
Simpler design
Easier manufacturing
Cost efficiency
Suitability for standard assembly processes
However, flat headers may not be ideal for applications requiring enhanced heat dissipation or precise optical positioning.
Pedestal headers feature a raised platform or pedestal in the center of the base where the die is mounted. This design improves several aspects of package performance.
Benefits of pedestal headers include:
Better die positioning
Improved optical alignment
Shorter wire bond distance in some designs
Potentially improved thermal path
Pedestal headers are commonly used in laser diode packages and other optoelectronic devices where alignment and performance are critical.
Some TO headers are designed with enhanced thermal mass or heat sink structures. These are used in high-power devices where heat removal is a primary concern.
Such headers may include:
Thicker bases
Larger metal mass
Special mounting surfaces
Structures optimized for heat conduction
These configurations are especially valuable in laser applications, high-power transistors, and other devices with significant thermal loads.
TO headers are usually made from metal materials selected for strength, thermal conductivity, expansion characteristics, and sealing compatibility.
Kovar is frequently used for glass-to-metal sealing because of how perfectly its coefficient of thermal expansion matches that of glass. This helps maintain hermeticity and mechanical stability over temperature changes.
Kovar is often chosen for high-reliability and hermetic TO packages.
For applications where heat dissipation is crucial, copper is a better option than Kovar due to its superior thermal conductivity. However, because copper has different expansion properties, it may require more careful design in hermetic sealing applications.
Copper-based headers are often used when thermal performance is a priority.
Many headers use nickel plating or gold plating on the surface to improve corrosion resistance, solderability, weldability, and long-term reliability.
Material selection is always a balance between thermal, mechanical, and manufacturing requirements.
Just as headers vary, TO caps also come in different configurations depending on whether the device is electronic or optoelectronic.
A closed metal cap is a solid enclosure without any optical opening. It is mainly used in purely electronic applications where the die does not need to interact with light.
Advantages include:
Strong mechanical protection
Excellent environmental sealing
Good suitability for hermetic packaging
Durable structure for harsh environments
These caps are commonly used in transistor and sensor packages where optical transmission is not required.
Window caps include a transparent opening that allows light to pass through while still protecting the internal die. These are among the most common cap types for optoelectronic TO packages.
The window may be made from materials such as:
Glass
Quartz
Sapphire
Optical filter materials
Window caps are widely used in photodiodes, infrared detectors, and laser devices. The choice of window material depends on wavelength requirements, transmission efficiency, durability, and cost.
Allow optical transmission
Maintain environmental protection
Support hermetic sealing
Suitable for various wavelength ranges
Additional cost
Need for precise window alignment
Potential reflection losses
Material selection complexity
Lens caps integrate a lens into the cap structure. Instead of only providing a transparent path for light, they actively shape, focus, or collimate the light beam.
Lens caps are particularly important in laser diode packaging, where beam control is essential for performance.
Advantages include:
Improved optical coupling
Better beam shaping
Reduced need for external optics
More compact system design
However, lens caps increase manufacturing complexity and require tighter alignment tolerances.
Some applications use cap structures with specific apertures or partially open features. These are less common and are usually application-specific. They may be used when the internal component needs a special optical or sensing exposure path.
Such designs require careful protection strategies because reducing enclosure coverage can increase environmental vulnerability.
Cap configuration is not only about whether a window or lens exists. The height and internal volume of the cap also matter.
Low-profile caps are compact and suitable for applications where internal die height is low and space saving is important. They reduce overall package size and may improve system integration in dense designs.
However, low-profile caps provide less internal clearance, which may limit wire bond height or optical structure placement.
High caps offer more internal space and are useful when the device includes:
Larger die
Tall wire bonds
Internal optics
Submounts
Additional internal components
The tradeoff is a larger overall package size, which may not be ideal for compact systems.
The real challenge in TO package design is not selecting the header and cap independently, but ensuring they work together as an optimized system.
For example:
A high-power laser diode may need a heat sink header combined with a lens cap.
A photodiode sensor may use a three-pin header with a window cap.
A simple transistor may use a flat three-pin header with a closed metal cap.
A monitoring-enabled optical device may require a multi-pin pedestal header with a high-clearance optical cap.
The electrical, thermal, optical, and mechanical requirements of the application determine the proper pairing.
When evaluating TO header options, engineers should focus on several practical factors.
The first question is what the device needs to do. A simple discrete component may only require a basic header, while a laser package may require precise optical and thermal support.
Determine how many connections are necessary for power, signal, ground, monitoring, and control. Avoid overdesigning with unnecessary pins, but ensure there is enough flexibility for the intended function.
If the die generates significant heat, the header must support efficient heat transfer. This may mean using a pedestal design, thicker base, or thermally conductive material.
For aerospace, defense, industrial, and medical applications, hermeticity may be essential. In these cases, the header design and material must be compatible with reliable sealing methods.
Header design must also fit the production process. Consider die attach methods, wire bonding accessibility, and cap sealing compatibility.
Selecting the right cap requires equal attention.
If the device interacts with light, determine whether a simple window is enough or whether a lens is needed. Also consider wavelength compatibility, reflection loss, and optical alignment.
The cap must protect the internal die from the application environment. Humidity, dust, vibration, and temperature changes all affect cap selection.
The cap must provide enough internal space for the die, wire bonds, and any optical or mechanical structures.
In compact systems, a lower-profile cap may be preferred. In more performance-driven designs, a larger cap may be acceptable.
More advanced caps such as lens caps usually increase cost and require tighter process control. Designers must balance performance gains with production practicality.
Optoelectronic devices often place the highest demands on header and cap design. Unlike standard electronic devices, they require not only protection and electrical connection but also controlled optical performance.
For example:
Laser diode TO packages often use pedestal or heat sink headers for thermal management. The cap may include a window or lens depending on whether beam shaping is needed.
Photodiodes commonly use window caps to allow incoming light to reach the active area. The header must provide stable die mounting and appropriate electrical connections.
Infrared applications often require special window materials that transmit infrared wavelengths effectively. Standard glass may not be suitable in some cases.
These devices may need very precise optical alignment, multi-pin headers, and lens caps to optimize coupling efficiency and signal integrity.
Reliability is one of the major reasons TO packages remain popular. However, reliability depends heavily on choosing the correct header and cap configuration.
Important considerations include:
Seal integrity over time
Resistance to thermal cycling
Corrosion protection
Mechanical robustness
Optical stability
Compatibility between materials
A poorly matched header-cap system can lead to seal failure, optical misalignment, heat accumulation, or device degradation.
While many standard TO configurations are available, custom designs are often necessary for specialized applications. Customization may involve:
Unique pin layouts
Special pedestal heights
Custom cap window materials
Lens integration
Special plating
Enhanced thermal structures
Specific dimensions for system compatibility
Custom configurations are especially common in medical, aerospace, military, sensing, and high-performance optical applications. Although custom solutions increase development complexity, they can significantly improve device performance and market fit.
